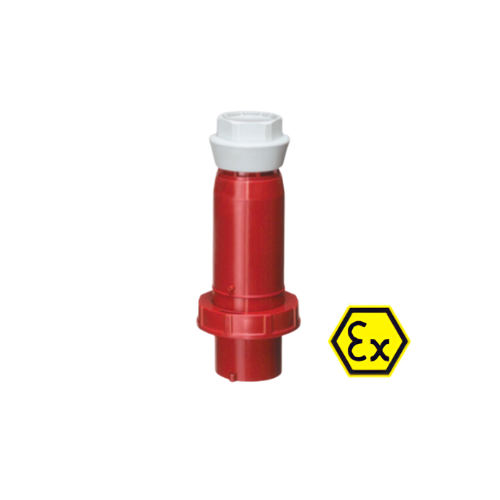

63 A plug ; -explosion-protected
Order number: 8579/12-506
Rated operational voltage : 200/346 … 240/415 V AC
Frequency range : 50 / 60 Hz
Detailed number of poles : 3 P + N + PE
Colour code : Red
Coding (clock hour position) : 6
Enclosure material : Polyamide
Silicone-free : No
Application range (zones) : 1,2,21,22
Area of application : European Union (ATEX)/ IECEx
Gas explosion protection : II 2 G Ex db eb IIC T6 … T5 Gb
Dust explosion protection : II 2 D Ex tb IIIC T60 °C … T75 °C Db
Min. ambient temperature : -45 °C
Max. ambient temperature : +40 °C
Rated operational current : 63 A
IP degree of prot. (IEC 60529): IP66
IP degree of prot. (IEC 60079): IP66
Impact strength (IEC 60079) : 7,00 J
Impact strength (IEC 62262) : IK10
Cable diameter : 24,00 – 36,00 mm
