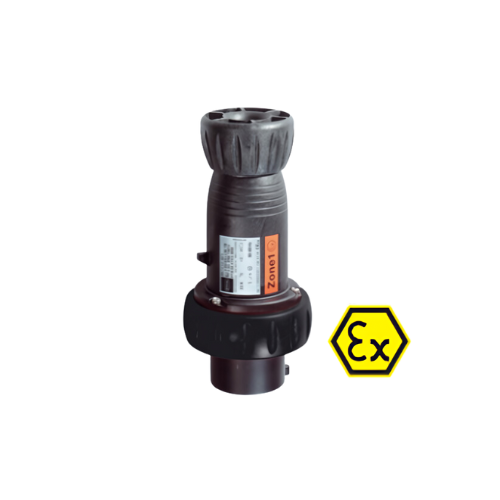

PHÍCH CẮM PHÒNG NỔ STAHL PLUG 8571/12-407-S-XX-X-XX-XXX

Hàng có sẵn (Ex-stock)- Cung cấp CO Phòng Thương Mại (Bản Điện Tử), CQ issued by Manufacturer.

Xuất xứ: Đức (Germany)

The R. STAHL 8571/12 series SolConeX plugs for Zone 1/21 are 4- or 5-pole versions up to 32 A.
They can be plugged and unplugged easily and simply thanks to floating pins. The pivoting strain
relief makes it easier to install the cable. Self-cleaning and corrosion-free plug pins made from
high-quality materials ensure optimum electrical contact.

Giá: Liên hệ

Hỗ trợ trực truyến:

Danh mục: THIẾT BỊ ĐIỆN PHÒNG NỔ (EX-PROTECTED), RECEPTACLE & TEMPORARY POWER SOLUTIONS

Mô tả
Tài liệu kỹ thuật

32 A plug ; -explosion-protected
Order number: 8571/12-407-S-XX-X-XX-XXX
Rated operational voltage : 480 … 500 V AC
Frequency range : 50 / 60 Hz
Detailed number of poles : 3 P + PE
Colour code : Black
Coding (clock hour position) : 7
Enclosure material : Polyamide , Glass fibre reinforced
Silicone-free : No
Application range (zones) : 1,2,21,22
Area of application : European Union (ATEX)/ IECEx
Gas explosion protection : II 2 G Ex eb IIC T6 … T5 Gb
Dust explosion protection : II 2 D Ex tb IIIC T81 °C Db
Min. ambient temperature : -50 °C
Max. ambient temperature : +25 °C
Rated operational current : 32 A

IP degree of prot. (IEC 60529): IP66
Impact strength (IEC 60079) : 7,00 J
Impact strength (IEC 62262) : IK10
Cable diameter : 13,00 – 25,00 mm
