Control box according to the order
Technical data:
Type code: 8146/5071
Explosion Protection Gas ATEX: II 2 G Ex db eb IIC T6 Gb
Explosion Protection Dust ATEX: II 2 D Ex tb IIIC T80 °C Db
Explosion Protection Gas IECEX: Ex db eb IIC T6 Gb
Explosion Protection Dust IECEX: Ex tb IIIC T80 °C Db
Document Number ATEX: PTB 01 ATEX 1024
Document Number IECEX: IECEx PTB 06.0090
Degree of protection (IP): IP66
Ambient Temperature: -20 °C …. +40°C
Temperature class: T6
Enclosure material: Polyesterresin
Rated Voltage [UN]: 230V
Rated Current: 1A
Frequency: 50/60Hz
Cross Section: 2.5mm2
Material rating plate: Polyester film
Wiring: 1:1 wiring
Terminal marking: on both sides
Hinge: Without
1 PC 8146/-071

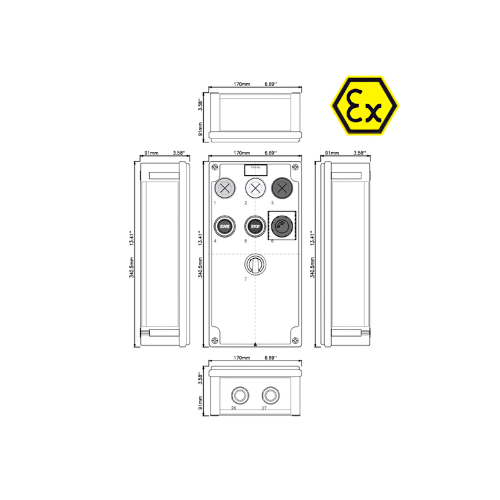

Empty enclosure , Polyester resin , 340,5mm x 170mm x 91mm
1 PC 8602A3-736-B-90I-E99, Silicone-free
Rotary actuator, Maxi, Black- Black
Polyamide
– 3 Led indicating lamp (White, Red, Yellow )
– 1 Start push button, momentary
-1 Stop Push button, momentary
-1 E-Stop mushroom stay-push button, latching, turn to release
– 1 Selector switch “Auto-Off- Manual”
6 PC UT 2,5
Terminal block , Grey
2 PC UT 2,5-PE
Protective conductor terminal , Green-yellow
1 PC 8290/3-M20
Stopping plug M20 , Polyamide
1 PC 8290/3-M25
Stopping plug M25 , Polyamide
1 PC Label PVC , White , glued
20 x 69 mm , font colour : black
Additional texts : TAG no
