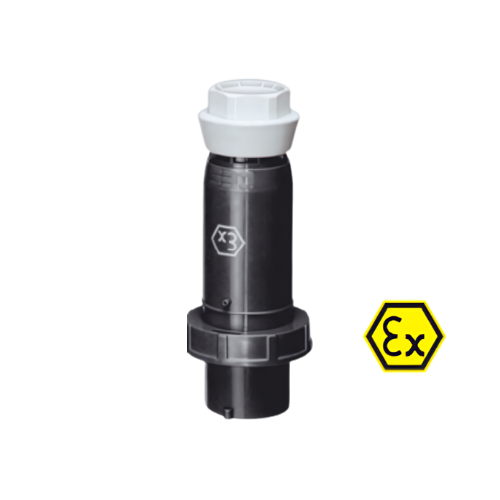

PHÍCH CẮM PHÒNG NỔ STAHL PLUG 8579/12-407

Hàng có sẵn (Ex-stock)- Cung cấp CO Phòng Thương Mại (Bản Điện Tử), CQ issued by Manufacturer.

Xuất xứ: Đức (Germany)

R. STAHL Series 8579/ 12 plugs for Zone 1/ 21 are 4- or 5- pole versions up to 63 A. The floating pins allow them to be inserted and removed quickly and easily. The pivoting strain relief makes it easier to install the cable. Self- cleaning and corrosion- free plug pins made from high- quality materials ensure optimum electrical contact.

Giá: Liên hệ

Hỗ trợ trực truyến:

Danh mục: THIẾT BỊ ĐIỆN PHÒNG NỔ (EX-PROTECTED), RECEPTACLE & TEMPORARY POWER SOLUTIONS Thẻ: #chống cháy nổ, #phòng nổ, #stahl, explosion proof, Plug

Mô tả
Tài liệu kỹ thuật

63 A plug ; -explosion-protected
Order number: 8579/12-407
Rated operational voltage : 480 to 500 V AC
Frequency range : 50 / 60 Hz
Detailed number of poles : 3 P + PE
Colour code : Red
Coding (clock hour position) : 7
Enclosure material : Polyamide
Silicone-free : No
Application range (zones) : 1,2,21,22
Area of application : European Union (ATEX)/ IECEx
Gas explosion protection : II 2 G Ex db eb IIC T6 … T5 Gb
Dust explosion protection : II 2 D Ex tb IIIC T60 °C … T75 °C Db
Min. ambient temperature : -45 °C
Max. ambient temperature : +40 °C
Rated operational current : 63 A

IP degree of prot. (IEC 60529): IP66
IP degree of prot. (IEC 60079): IP66
Impact strength (IEC 60079) : 7,00 J
Impact strength (IEC 62262) : IK10
Cable diameter : 24,00 – 36,00 mm
