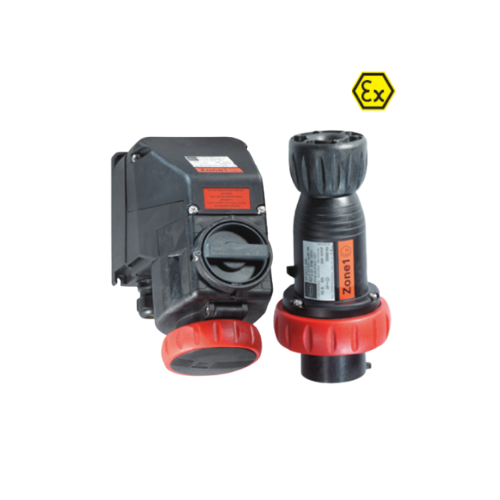

16 A wall-mounting socket
explosion-protected
8570/11-406-S-01-0-00-XXX

Rated operational voltage : 380 … 415 V AC
Frequency range : 50 / 60 Hz
Detailed number of poles : 3 P + PE
Colour code : Red
Coding (clock hour position) : 6
Enclosure material : Polyamide , Glass fibre reinforced
Silicone-free : No
Application range (zones) : 1,2,21,22
Area of application : European Union (ATEX)
Gas explosion protection : II 2 G Ex db eb IIC T6 … T5 Gb
Dust explosion protection : II 2 D Ex tb IIIC T73 °C Db
Min. ambient temperature : -50 °C
Max. ambient temperature : +35 °C
Rated operational current : 16 A
Min. ambient temperature 2 : -50 °C
Max. ambient temperature 2 : +65 °C
Rated operational current 2 : 6 A
Min. ambient temperature F : -58 °F
Max. ambient temperature F : +95 °F
Min. ambient temperature °F 2: -58 °F
Max. ambient temperature °F 2: +149 °F
IP degree of prot. (IEC 60529): IP66
IP degree of prot. (IEC 60079): IP64
Impact strength (IEC 60079) : 7,00 J
Impact strength (IEC 62262) : IK10
Entry 1 : M25 x 1.5
Entry 1 type : Polyamide cable gland
Entry 1 type : 8161/7-M25-1707-LT
Entry 1 clamping range : 7 – 17 mm
Entry 2 : M25 x 1.5
Entry 2 type : Polyamide stopping plug
Entry 2 type : 8290/3-M25
