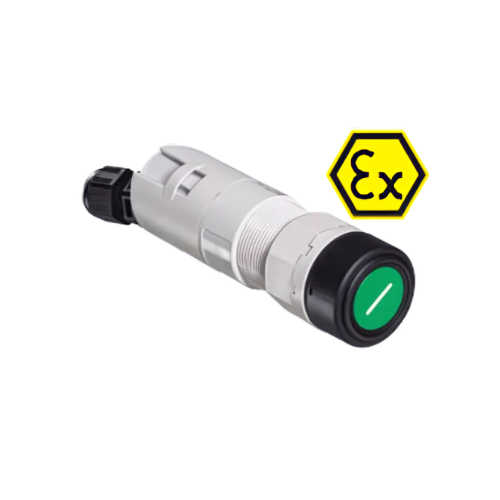

NÚT NHẤN STAHL PUSHBUTTON 8003/111-001

Nút nhấn chống cháy nổ STAHL Push button, NO+NC contact, spring return, green.
Chứng chỉ chống cháy nổ ATEX/ IECEx, sử dụng độc lập, không cần lắp vào tủ Ex e/ Ex d.
Ứng dụng cho Wellhead Control Panel (WCP), Local Control Station,…
R. STAHL Series 8003 switches and control buttons for panel mounting take on various switching
functions in latching and spring return positions up to 6 A, which can be subsequently recoded.
They are fully certified, explosion-protected equipment with an Ex e connection chamber. With the
patented mounting mechanism, panel mounting with drilled holes or openings of 30.5 mm is quick
and easy.
Compatible actuators are available for a comprehensive range of applications.

Giá: Liên hệ

Hỗ trợ trực truyến:

Danh mục: THIẾT BỊ ĐIỆN PHÒNG NỔ (EX-PROTECTED), BUILT-IN COMPONENTS

Mô tả
Tài liệu kỹ thuật

Control devices explosion-protected
Type : 8003/111-001

AC rated operational voltage : 500 V
Rated operational current : 6 A
Number of switching positions : -9
Number of NCs : 1
Number of NOs : 1
Actuator : Pushbutton
Enclosure material : Polyamide
Contact material : Silver-nickel
Application range (zones) : 1 , 2 , 21 , 22
Gas explosion protection : II 2 G Ex db eb IIC T6 Gb
Dust explosion protection : II 2 D Ex tb IIIC T80 °C Db
Area of application : European Union (ATEX)
CCC
IECEx
IP degree of prot. (IEC 60529): Reverse side IP65, front IP66
Min. ambient temperature : -20 °C
Max. ambient temperature : +60 °C
Service life, min. : 10^5 operating cycles
