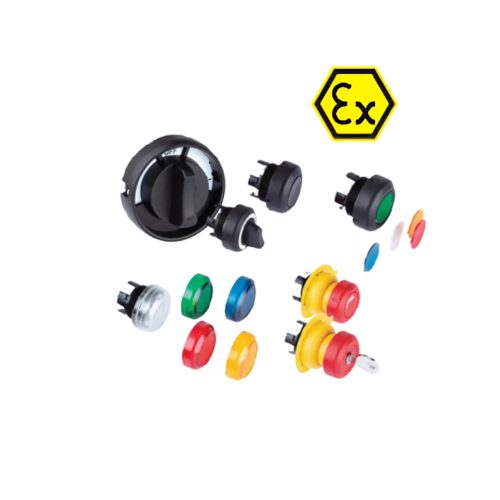

Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN 60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series.
Functions
| Functions | |
|---|---|
| Pushbutton actuator | Spring return function; replaceable designation labels |
| Mushroom pushbutton actuator | Spring return function; replaceable designation labels |
| Mushroom stay-put button actuator | Press to lock, turn right to unlock; yellow backing plate enclosed; for use for EM-STOP function |
| Mushroom stay-put button actuator with key lock | Press to lock; unlock only with key; yellow backing plate enclosed; for use for EM-STOP function |
| Key-operated button actuator | Switching function with 2 or 3 latching positions; key removable in all positions; “spring return” and/or “key not removable” functions are codeable |
| Twin pushbutton actuator | Spring return function; 2 push buttons in one actuator; replaceable designation labels |
| Rotary actuator, axial | Switching function with 2 or 3 latching positions |
| Closing part | For closing unused holes in cover |
| Small rotary actuator | Switching function |
| Rotary actuator Maxi | Switching function |
| Potentiometer | Infinitely variable |
| Illuminated pushbutton | Spring return / illumination function; replaceable colour filters |
| Indicator lamp | Illumination function; replaceable coloured caps |
