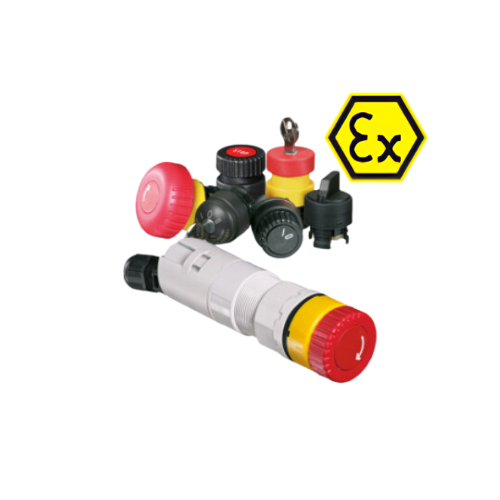

Explosion Protection
IECEx gas explosion protection Ex db eb IIC T6 Gb Ex db eb IIC T6 Gb
IECEx dust explosion protection Ex tb IIIC T80 °C Db Ex tb IIIC T80 °C Db
ATEX gas explosion protection E II 2 G Ex db eb IIC T6 Gb E II 2 G Ex db eb IIC T6 Gb
ATEX dust explosion protection E II 2 D Ex tb IIIC T80 °C Db E II 2 D Ex tb IIIC T80 °C Db
Certificates ATEX (PTB), Canada (UL), IECEx (PTB), Korea (KGS), USA (UL) ATEX (PTB), Canada (UL), IECEx (PTB), Korea (KGS), USA (UL)
Electrical Data
Rated operational voltage AC 500 V 500 V
Rated operational current 6 A 6 A
Switching capacity AC-12 500 V / 6 A / max. 3000 VA 500 V / 6 A / max. 3000 VA
Switching capacity AC-15 400 V / 6 A / max. 1250 VA 400 V / 6 A / max. 1250 VA
Switching capacity DC-13 110 V / 1 A / max. 110 W 110 V / 1 A / max. 110 W
Switching capacity DC-132 contact elements in series
60 V/6 A 60 V/6 A
Mechanical Data
Degree of protection (IP) (IEC 60529) Reverse side IP65, front side IP66 Reverse side IP65, front side IP66
Silicone-free Yes No
Connection cross-section 0.75 … 1.5 mm² 0.75 … 1.5 mm²
Connection cross-section AWG 18 AWG … 12 AWG 18 AWG … 12 AWG
Depth of cut-out 130 mm 130 mm
Mounting depth, inches 5.12 in 5.12 in
Service life, min. 105 operating cycles 105 operating cycles
Mounting / Installation
Tightening torque 3 Nm 3 Nm
Tightening torque lbf in 26.55 lbf in 26.55 lbf in
Components
Entry 1 8161/7-M16-0902 8161/7-M16-0902
Entry 1 type Polyamide cable gland, black Polyamide cable gland, black
| Loại tác động | Số vị trí chuyển mạch | Số NC | Số NO | Vật liệu tiếp điểm | Mã sản phẩm | Mã đặt hàng | Khối lượng |
|---|---|---|---|---|---|---|---|
| Pushbutton | 1 | 1 | – | Gold-plated | 8003/111-001-AU | 269817 | 125 g |
| Pushbutton | 1 | 1 | – | Silver-nickel | 8003/111-001 | 269763 | 189 g |
| Mushroom pushbutton | 1 | 1 | – | Silver-nickel | 8003/111-003 | 269811 | 196 g |
| Mushroom stay-put button | 1 | 1 | – | Silver-nickel | 8003/111-012S | 269846 | 125 g |
| Mushroom stay-put button EM-STOP | 1 | 1 | – | Silver-nickel | 8003/111-010S | 269835 | 125 g |
| Mushroom EM-STOP, Ø55 mm | 1 | 1 | – | Silver-nickel | 8003/111-015S | 269838 | 145 g |
| Key-operated switch MS1 | 2 | 1 | 1 | Silver-nickel | 8003/111-008-2-r-MS1 | 269815 | 222 g |
| Key-operated switch MS2 | 2 | 1 | 1 | Silver-nickel | 8003/111-008-2-r-MS2 | 270051 | 223 g |
| Key-operated switch MS3 | 2 | 1 | 1 | Silver-nickel | 8003/111-008-2-r-MS3 | 270052 | 230 g |
| Rotary actuator (not padlockable) | 2 | 1 | – | Silver-nickel | 8003/111-726-2-r | 269816 | 125 g |
| Rotary actuator (padlockable) | 3 | 2 | – | Silver-nickel | 8003/131-727-3-rr | 269825 | 196 g |
| Selector switch | 2 | 1 | – | Silver-nickel | 8003/111-005 | 269768 | 125 g |
