Marking: II 2 G Ex eb IIC T4, T5, T6
Material: Stainless steel AISI 316L / EN 1.4404
Finish: Bright chemical dip
Ingress protection: IP66
Safety cover: IP 2X
Earthing on JB: Through studs on enclosure and gland plates
Earthing cable: Copper bar mounted on spacers
Ambient temperature: -20° to +40°C –
Silicone gasket: -50°C to 60°C
Cable entries:
EX cable glands as standard. Only appropriate
ATEX/IECEx certified glands, blanks and adaptors must
be used.
Approval and Certificates:ATEX/ IECEx
Enclosure solutions with optional technical specifications upon request. These solutions are subject to unit
verification certifications or field certifications.
Complies with:
EN 60079-0:2012
EN 60079-7:2007
IEC 60079-0:2011
IEC 60079-7:201

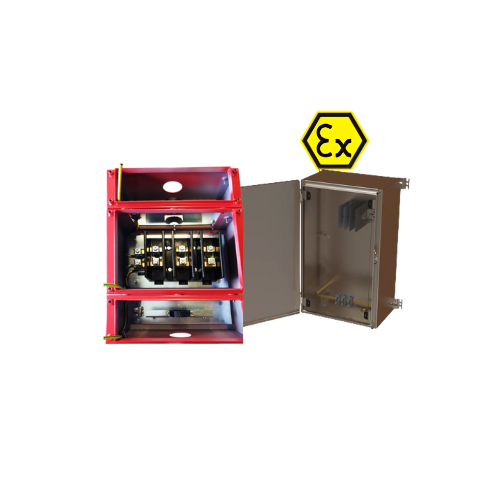

HIGH VOLTAGE JUNCTION BOX
Features & Benefits – High Voltage Junction Box
Key Features:
✔ Compact & flexible design – optimized for efficient installations
✔ Current rating: Up to 420A
✔ Voltage rating: Up to 11kV
✔ CU bar for earthing – ensuring reliable grounding
✔ Bottom side entries – for streamlined cable management
✔ Padlock facility – for secure access control
✔ Certified explosion protection – ATEX & IECEx approved
✔ Supports up to 185mm² wiring (185mm² with ferrules)
✔ Hinged door – convenient access
Optional Customizations:
🔹 Voltage upgrade: 6.3 kV to 11kV on request
🔹 Tailored solutions: Fully customizable per application requirements
🔹 Fiber-optical compatibility – advanced data transmission support
🔹 Exi safety switch – additional protection for hazardous areas
📞 Contact us today for specifications and custom solutions!
