Product Description:

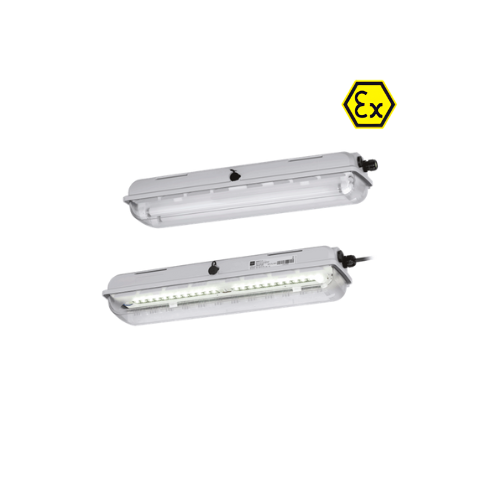

The 6002/4 series LED linear luminaire is designed to efficiently light surfaces up to 10m in height, as well as equipment and objects in both indoor and outdoor settings. This luminaire features the latest LED technology, boasting high luminous efficacy and a long service life. Optional DALI control and monitoring, and addressable configurations for common battery systems are available.

Key Features:
Latest LED technology with high luminous efficacy.
Long service life.
High luminaire efficacy (138 lm/W).
Luminous flux remains at 90% of initial output after 100,000 hours.
Optional DALI control and monitoring.
Optional addressability for common battery systems.
Suitable for use in Ex Zones 1, 2, 21 and 22.
Technical Specifications:
Rated operational voltage: 100-240 V AC, 110-250 V DC.
Lamp wattage: 42 W.
Light color: 5000K neutral white.
Light distribution: 120° x 120° with diffusing glass.
Luminous flux: 5810 lm.
Color rendering: ≥80.
Ambient temperature range: -40°C to +50°C / -40°C to +60°C.
IP rating: IP66/IP67.
Impact strength: IK10.
Enclosure material: Glass fiber reinforced polyester resin.
Weight: 6.9 kg.
Dimensions: 1310 mm (length) x 184 mm (width) x 125 mm (height).
IECEx gas certificate: IECEX IBE 14.0035.
IECEx dust certificate: IECEX IBE 14.0035.
ATEX gas certificate: IBEXU 14ATEX1088.
ATEX dust certificate: IBEXU 14ATEX1088.
Explosion protection: IECEx and ATEX certified for gas and dust environments.
Threaded plate: 2x SS430 stainless steel.
Ballast: 6045/311-120-10.
Through wiring: With 5 conductors 2.5 mm².
Drilled holes: 4 x M20.
