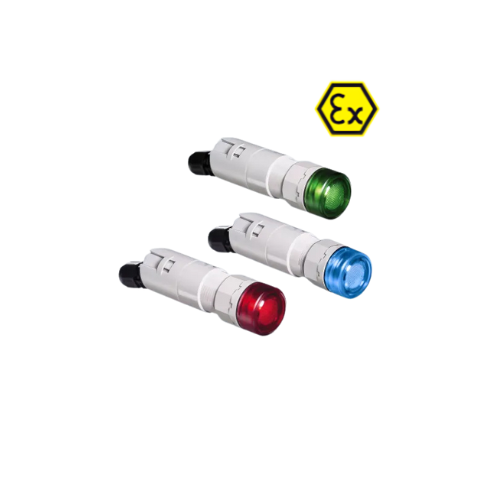

R. STAHL Series 8013 LED Indicator Lamp: Certified Illumination for Hazardous Areas
In industrial environments where safety and reliability are paramount, clear and dependable visual signaling is critical. The R. STAHL Series 8013 LED Indicator Lamp is engineered to meet this demand, providing unambiguous status indication for panel mounting in hazardous locations. Designed for global compliance with ATEX and IECEx standards, this indicator lamp is the definitive choice for control cabinets, enclosure walls, and panels in high-risk settings.
The Advantage of Advanced LED Technology
At the core of the Series 8013 is its beneficial LED technology, which offers significant advantages over traditional lighting. Operators benefit from:
Extremely Long Service Life: With an electrical service life of 100,000 lighting hours, the 8013 series minimizes maintenance requirements and replacement costs, ensuring long-term operational continuity.
High Luminance: The powerful LED provides bright, clear light signals that are easily visible, ensuring that command statuses are communicated effectively.
Low Heat Build-up: The lamp’s efficient design generates minimal heat, enhancing safety and making it suitable for compact installations where temperature control is a concern.
Certified Safety for Demanding Environments
The R. STAHL 8013 is built and certified for uncompromising safety in explosive atmospheres. It is approved for installation in:
Gas explosion hazardous areas:
Zone 1 and Zone 2.
Dust explosion hazardous areas:
Zone 21 and Zone 22.
With certifications including ATEX (PTB), IECEx (PTB), and China (CQST), this indicator lamp provides documented proof of its suitability for the most stringent safety protocols worldwide. The different available product variants come with Ex de or Ex i explosion protection, offering solutions tailored to specific intrinsic safety requirements.
Versatile and User-Friendly Design
R. STAHL has designed the 8013 series for maximum flexibility and ease of use.
Multiple Colors, One Solution
To accommodate various signaling needs, every lamp includes a set of color filters. The package contains red, yellow, green, blue, and white lenses, allowing users to define the signal color on-site without needing to order different models. The lamp itself uses a white LED to ensure vibrant and true color representation through each filter.
Flexible Installation Options
The 8013 series offers multiple configurations to streamline installation in any setup. Versions are available with a spring clamp terminal for quick and secure wiring. For applications requiring a ready-to-connect solution, models with a prefabricated connection cable in various lengths (3 m, 6 m, 15 m) are also available. The lamps are designed for mounting in standard 30.5 mm holes.
Built to Last: Key Technical Specifications
The robust construction of the Series 8013 ensures reliable performance even in harsh conditions.
High Degree of Protection: The lamp features IP66 protection on the front side, making it resistant to dust ingress and powerful water jets. The reverse side offers either IP20 or IP65 protection, depending on the model.
Wide Ambient Temperature Range: It is rated to operate in temperatures from -30 °C to +60 °C (-22 °F to +140 °F), guaranteeing performance across diverse climates.
Durable Materials: The lamp is silicone-free, making it suitable for sensitive applications like paint shops.
For a reliable, certified, and versatile signaling solution for hazardous areas, the R. STAHL Series 8013 LED Indicator Lamp delivers unparalleled performance and safety.
